Product Details

HD smart drain valves can reliably discharge water promptly, Avoid subsequent losses and provide a better dew point. Suitable for centrifuges, screw machines, dryers, filters, and other demanding, conveniently connected to the power of the working conditions drainage


Meet a variety of working conditions

1. High-Quality Pneumatic Diaphragm Valve, suitable for high-intensity and high-frequency drainage with varying processing capacities.
2. Dual-system design with a built-in BYPASS, applicable for draining extremely large water quantities in equipment.
3. Stainless steel high-pressure model, designed for W50ba high-pressure drainage.
4. Heavy-duty mechanical drain without the need for electrical connection, suitable for high-volume and heavy-load conditions in applications such as air tanks, centrifuges, and dryers.
5. Although the lifespan of the electric ball valve type is shorter, it is more suitable for harsh conditions with a large volume of impurities

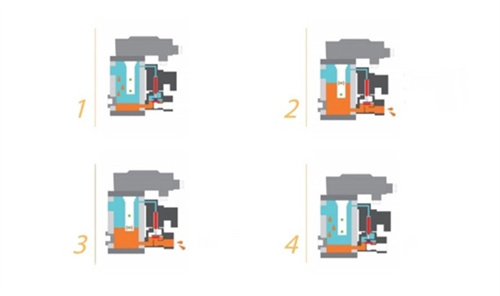

Working Principle

1. The condensate flows into the chamber. The water level in the chamber is slowly rising 2.Condensate reaches high water level. Signal from level sensor. Activate solenoid valve to start draining 3.Discharge of condensate to low water level. Signal from level sensor. Close the solenoid valve to stop draining 4.When the solenoid valve is closed, the Liquid level is still slightly above the drain. Remaining portion of condensate, forming a liquid seal. No compressed air discharge

Complete Functions

Equipped with a patented control system, our core algorithm simulates potential faults under various operating conditions, enabling self-repair and enhancing the safety and reliability of energy-efficient drainage.

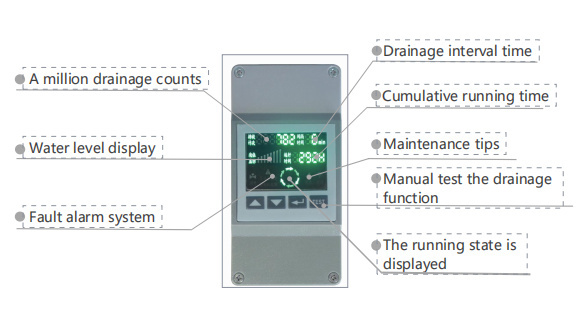

Drainage Count/Electronic Liquid Level:
Records drainage frequency for accurate assessment of operational status. Displays liquid level. Fault Alarm/Intelligent Restoration:
In the event of liquid level or electromagnetic valve faults in the drain, the control system issues automatic repair command
The electromagnetic valve forcefully operates according to the instructions until the fault is rectified. Anti-Air Resistance Function:
In the presence of an ‘air resistance’ fault, the control system issues repair commands, prompting the electromagnetic valve to act forcefully until the fault is resolved.”


Products Features

1. Electrical parts ●  Flame retardant ABS material ● IP65 protection level ●  High quality chips/components 2. Liquid Level Sensor ●Sensing level, no direct contact with liquid ●Stable and reliable, long-lasting use 3. High quality solenoid valves ●Designed according to the characteristics of compressed air drainage, larger diameter, greater processing capacity ● Adopt pneumatic diaphragm valve, more stable and reliable ●  Stainless steel valve core, piston structure, strong fatigue resistance 4. Inlet water filtration Large particles of contaminants are blocked in the chamber, the failure rate is greatly reduced. ●Extra-large filter chambers ensure long maintenance intervals and minimize labor. ●Stainless steel filter plate pull-out design, easy maintenance, standard slag discharge ball valve ●Repeated switching on to discharge impurities

Customized Options

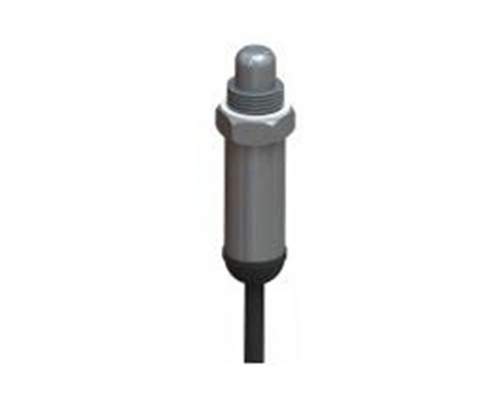

Visualization of the Liquid Level

RS485 Communication

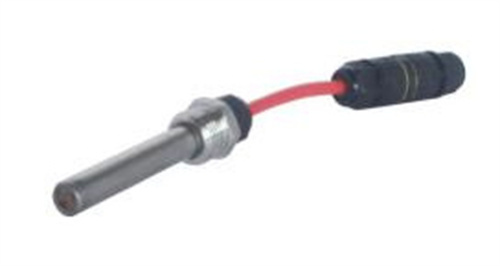

Heater

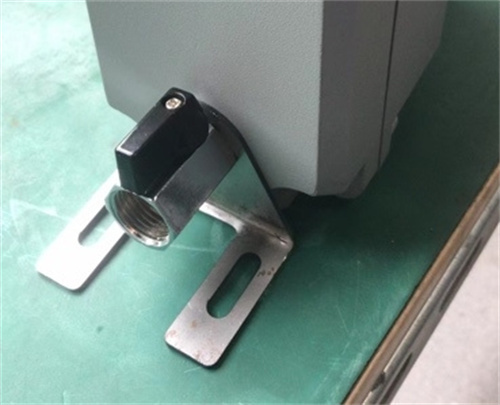

Installation bracket

Technical Parameters

Customized Options

RS485 Communication

Heater



Installation bracket

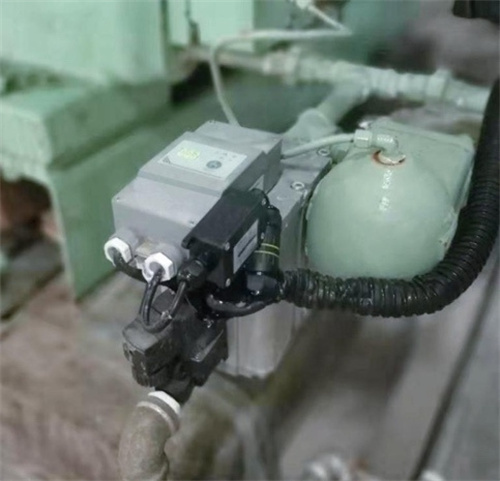

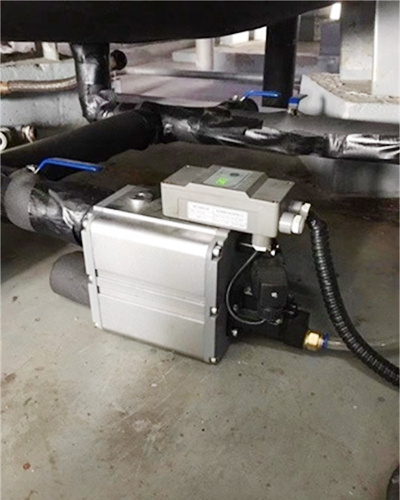

Project Examples
