SDH Zero Air Consumption Smart High Heavy Drain
-
Zero Air Consumption High Heavy SD45/SD85/SD150/SD150L/SD350/SD350L Drain
Zero-air consumption high-pressure smart drain has the functions and features of anti-air resistance, intelligent repair of faults, not easy to clog and convenient slag draining. Suitable for air compressors, dryers and other high-demand, easy to connect to the power of the drainage conditions, can provide signal output.
- Phone：+86-15371056062
- E-mail：sales@dostar-drainer.com
Detail
Product Details
SDH 40 Zero-air consumption high-pressure intelligent drain has the functions and features of anti-air resistance, intelligent repair of faults, not easy to clog and convenient slag draining. Suitable for air compressors, dryers and other high-demand, easy to connect to the power of the drainage conditions, can provide signal output.

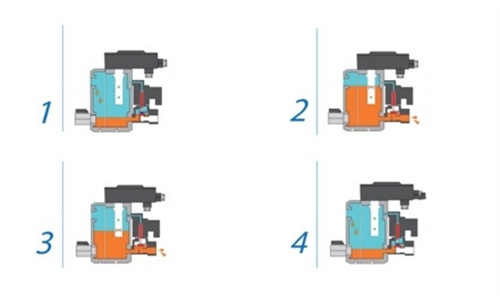

Working Principle
 |
1. The condensate flows into the chamber. The water level in the chamber is slowly rising 2.Condensate reaches high water level. Signal from level sensor. Activate solenoid valve to start draining 3.Discharge of condensate to low water level. Signal from level sensor. Close the solenoid valve to stop draining 4.When the solenoid valve is closed, the Liquid level is still slightly above the drain. Remaining portion of condensate, forming a liquid seal. No compressed air discharge |
Products Features
 |

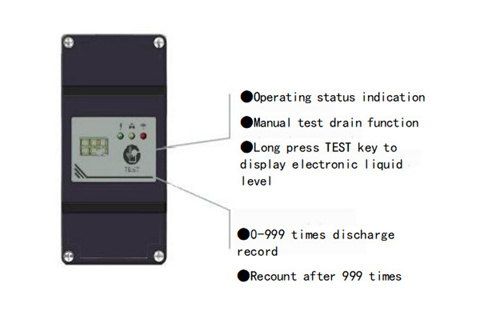

Intelligent control system, using the patented core algorithm, with drain counting/electronic liquid level/fault alarm/anti-air-blocking functions, simulating possible faults under various working conditions and repairing them intelligently, making energy drainage safer and more reliable. ● Extra-large filter chambers and drainable design ensure long maintenance intervals and minimize labor. Fault alarm/intelligent repair ● In case of high or low liquid level and solenoid valve failure, the control system will give automatic repair instruction, and the solenoid valve will be forced to act according to the instruction until the failure is eliminated. ● Anti-air-blocking function In case of “air -blocking fault, the control system will give a repair instruction, and the solenoid valve will be forced to act according to the instruction until the fault is eliminated. |
Technical Parameters
| Brand | Dostar |
| Model | SDH40 |
| processing capacity(m³/min) | 40 |
| Voltage | 110～220V/24V |
| operating pressure | 0.1-50 |
| Liquid level observation | Electronic liquid level function |
| Maximum working temperature | 60℃ |
| Cavity Material | 304stainless steel |
| Inlet size | G1/2″ |
| Drain size | G1/2″ |
| Air Return Size | G1/4″ |
| size W×L×H(mm) | 177×110×152 |
Customized Options
RS485 Communication
Heater
Installation bracket
