  • Zero Air Consumption SMD65/SMD65H/SMD350/SMD500 Drain

    SMD series zero-air-consumption heavy-duty mechanical drain, suitable for draining applications in air storage tanks, dryers, filters, refrigerated dryers, etc., where there is a large water volume, heavy load, and inconvenience in connecting to power.

Phone:+86-15371056062
E-mail:sales@dostar-drainer.com

Detail

Product Details

SMD series zero-air-consumption heavy-duty mechanical drain, suitable for draining applications in air storage tanks, dryers, filters, refrigerated dryers, etc., where there is a large water volume, heavy load, and inconvenience in connecting to power.



Working Principle

SMD Series Zero AirConsumption Mechanic Drain

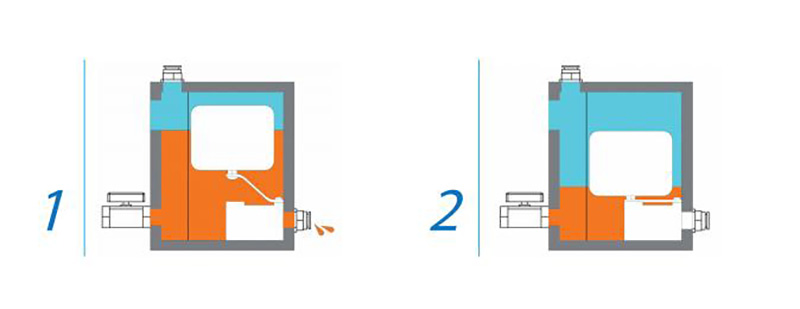

Drainage device opens and closes the drain port through the action of the float to achieve zero air consumption drainage.
● As the condensate in the storage chamber continues to accumulate, when the buoyancy of the float overcomes the pressure of the system and the gravity of the float, the drainage outlet opens, and the drain starts to discharge
● The drain is closed when the water level is lowered after draining and the buoyancy force is less than the pressure of the system and the gravity of the floats
● The drain operates continuously in accordance with the quantity of condensate



Products Features

SMD Series Zero AirConsumption Mechanic Drain1

Zero-air-consumption heavy-duty mechanical drain,designed for heavy loads to enhance drainage capacity and extend maintenance cycles.

●No need for a Y-type filter, equipped with an extra-large filter chamber.

●Comes with a standard drain ball valve, facilitating maintenance through backwashing with internal pressure.

● Minimalist design, stable and reliable.



Optional Accessories

SMD Series Zero AirConsumption Mechanic Drain2

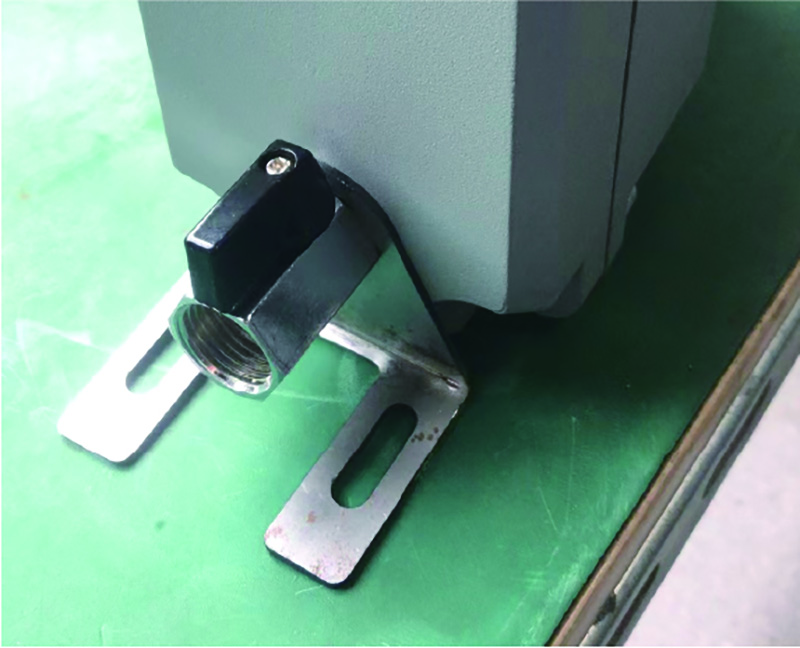

Installation bracket

SMD Series Zero AirConsumption Mechanic Drain3



Electric Heater

SMD Series Zero AirConsumption Mechanic Drain4

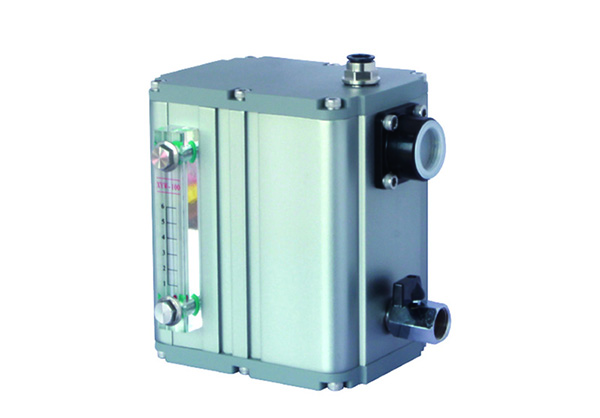

Liquid Level Visualization Components

Technical Parameters

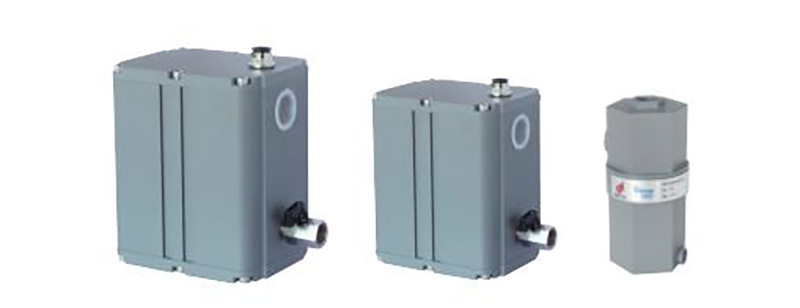

Brand

SMD65

SMD65H

SMD350

SMD500

Cold dryer flow rate

50

matching laser cutting system

320

600

Filter flow rate

250

matching laser cutting system

/

Centrifuge flow rate

/

/

150

300

Dryer flow rate

/

/

100

250

Maximum operating pressure

10

16

10

10

Working temperature

1~60°C

1~60°C

1~60°C

1~60°C

cavity material

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Inlet size

G1/2″

G1/2″

G3/4″

G1″

Drain size

G1/4″

G1/4″

G1/4″

G1/4″

Air Return Size

G1/2″

G1/2″

G1/4″

G1/2″

Slag outlet size

G1/2″

G1/2″

G1/2″

G3/4″

Size W×L×H(mm)

H166×φ82

H166×φ82

130×102×159

156×122×169

Weight(kg)

0.6

0.6

2.5

3.6

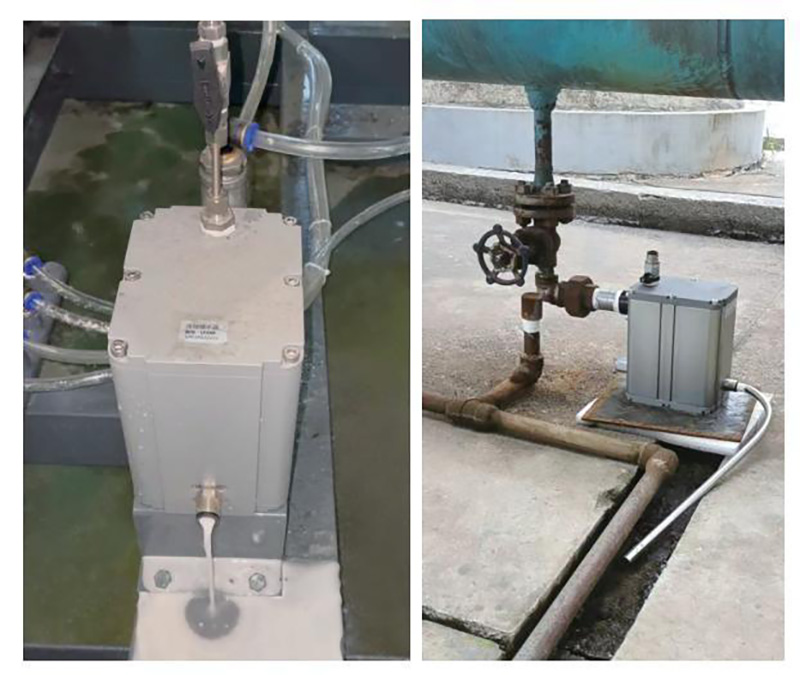

Project Examples
